Automatic Onion Powder Production Line

The onion powder production line is a complete set of automated equipment designed to process fresh onions into high-quality powder. This production line encompasses various stages, including peeling, slicing, drying, grinding, and packaging.

Taizy onion powder processing line offers numerous advantages, such as a high degree of automation, stable output, and full compliance with food hygiene standards. It is widely utilized in seasoning factories and food processing plants. If you are currently seeking equipment for onion powder processing, we invite you to contact us for detailed information!

Advantages of onion processing line

• High degree of automation: The entire production line covers the complete process, from onion peeling to the packaging of onion powder. This significantly reduces manual involvement, resulting in substantial savings on labor costs.
• High processing efficiency: The various pieces of equipment are seamlessly integrated and operate with stability, allowing for continuous, long-duration production to ensure a consistent and steady output.
• Superior product quality: From uniform slicing and precise drying to the final milling process, the system effectively guarantees the quality of the onion powder, thereby enhancing the product’s competitiveness in the market.
• Flexible configuration: The production line can be customized to meet specific client requirements—including machinery configuration, voltage specifications, and other parameters.
• Increased profitability: By utilizing deep processing to transform fresh onions into onion powder—a product that is both easy to store and transport—the system minimizes raw material waste and significantly boosts the added value of the final product.

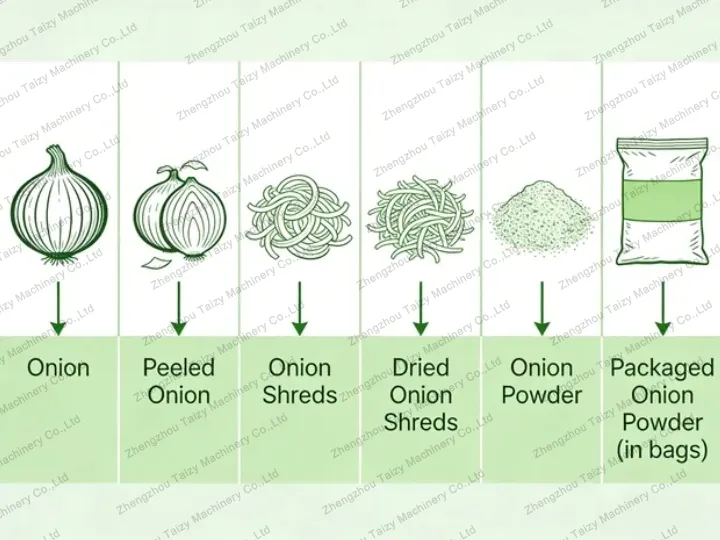

Onion powder production process flow

A complete onion powder production line is realized through the collaborative operation of multiple onion processing machines. It achieves continuous and automated production, spanning the entire process from raw material handling to finished product packaging.

Process flow:

Raw onions → Peeling → Cutting → Drying → Grinding → Packaging

Main equipment of onion powder production line

The machinery configuration for the entire production line can be flexibly customized to meet the client’s specific requirements. The equipment typically required for a standard production line is listed below:

1. Onion peeling machine
2. Onion cutting machine
3. Onion drying machine
4. Onion grinding machine
5. Onion powder packaging machine

Onion peeling machine

The function of the onion peeler machine is to remove the outer skin of onions rapidly; its specifications are as follows:

Model	Power	Output	Weight	Size
TZ-1500	15000w	1000–1500kg/h	280kg	200×82×140cm
TZ-3000	3000w	2000–3000kg/h	450kg	240×100×175cm

Equipment advantages:

• Feature a chain-type conveying and peeling mechanism, enabling continuous operation.
• Utilize high-speed airflow peeling technology to preserve the integrity of the raw materials.
• Require no mechanical friction during the peeling process, thereby maintaining the freshness of the onions.
• Boast a well-engineered structural design that is energy-efficient and easy to clean.

Equipment pictures:

Onion slicing machine

Model	Capacity	Voltage	Power	Material
TZ-600	300–600kg/h	220V/50Hz	0.75kw	304 stainless steel

Cutting formats:

• Dicing: 6, 8, 10, 15, 20, 25, 30mm
• Cutting into strips: 3, 4, 6, 9mm
• Slicing: 2–8mm

Equipment advantages:

• Achieve various cutting effects simply by changing the blades.
• Multi-functional design maximises equipment utilisation.
• Enhances the consistency of finished product quality.
• Constructed from 304 stainless steel for safety, hygiene, and ease of cleaning.

Equipment showcase:

Onion drying machine

The function of the onion dryer is to dry sliced ​​onions, thereby facilitating the subsequent grinding process. Its specifications are as follows:

Model	Number of tray layers	Capacity (per batch)	Overall size (mm)	Tray size (mm)	Power(kw)	Circulation fans(kw)	Exhaust fans(kw)	Material
TZ-20	20	Approximately 100kg	1100×1100×2200	800×600	6	2×0.37	1×0.18	Rock wool
TZ-40	40	Approximately 200kg	2200×1100×2200	800×1000	13.5	2×0.37	1×0.18	Rock wool
TZ-80	80	Approximately 400kg	2000×1800×2200	800×600	27	4×0.37	2×0.18k	Rock wool
TZ-120	120	Approximately 600kg	2600×1800×2200	800×600	36	4×0.37	2×0.37	Rock wool

Key advantages:

• A circulation fan ensures a continuous flow of hot air within the drying chamber, guaranteeing uniform heating.
• An intelligent control system allows for the precise adjustment of temperature, humidity, drying duration, and intervals, offering convenient operation.
• Utilise 7.5 cm thick rock wool insulation panels to minimise heat loss.
• Trays are customizable, with options available in galvanised steel, stainless steel, or plastic.

Onion powder grinding machine

The primary function of an onion powder making machine is to grind dried onions into powder.

Model	Power	Capacity	Fineness	Weight
15B	2.2kw	10–60kg/h	20–120mesh	150kg
20B	4kw	60–150kg/h	20–120mesh	280kg
30B	7.5kw	100–300kg/h	20–120mesh	340kg
40B	1.1kw	160–800kg/h	20–120mesh	450kg
50B	18.5kw	500–1500kg/h	20–120mesh	530kg

Equipment advantages:

• Adjustable fineness (20–120 mesh).
• Stable performance, uniform powder output, and consistent quality.
• Constructed from food-grade stainless steel, offering strong corrosion resistance and a long service life.

Onion powder packaging machine

Packaging is the final step in the onion powder production process. Detailed information regarding the onion powder packaging machine is provided below:

Model	Speed	Weight Range	Power	Material
TZ-320	20–80bags/min	0–200g	1.8kw	304 stainless steel
TZ-450	20–80bags/min	≤600g	2.2kw	304 stainless steel

Packaging machine pictures:

Application scenarios for onion powder production line

As a common seasoning ingredient, onion powder enjoys widespread market demand. Consequently, the onion powder production line is suitable for a diverse range of industries:

1. Seasoning processing industry
2. Food processing enterprises
3. Agricultural product deep-processing enterprises
4. Export processing enterprises
5. Central kitchens and food service supply chains

How much does onion powder processing line?

The price of an onion powder production line typically falls around $15,000. However, the price is not fixed; it is generally influenced by a variety of factors:

• Production output requirements
• Equipment configuration
• Material and process requirements
• Customization requirements

Why choose Taizy as your supplier?

When selecting the onion powder production line, a reliable supplier is paramount. Leveraging extensive experience and a comprehensive service system, Taizy has provided efficient and stable equipment solutions to numerous clients worldwide.

1. Comprehensive equipment range: We offer not only complete onion powder production lines but also a full range of auxiliary equipment.
2. Customised solutions: Based on our clients’ specific requirements, we provide customized configurations and voltage adjustments.
3. Extensive export experience: Taizy’s equipment has been exported to numerous countries and regions worldwide. We possess extensive experience in international trade.
4. Comprehensive after-sales service: We maintain a professional after-sales and technical support team, providing rapid-response technical assistance.

Contact us immediately!

If you are looking for a reliable supplier of an onion powder production line, Taizy is your ideal choice. We will provide you with professional advice, detailed solutions, and competitive quotations. You are welcome to contact us at any time to embark on your journey toward efficient production!
